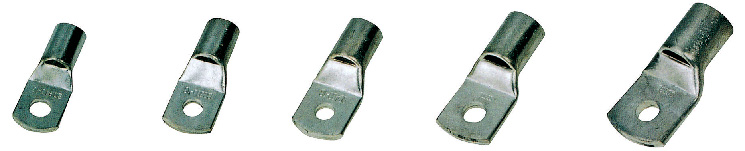

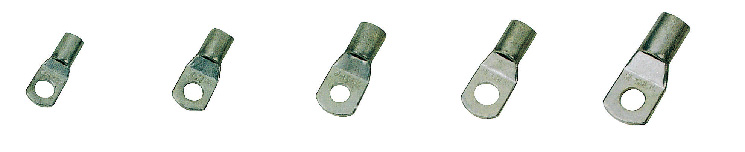

SC(JGK) Cable Lug

Application

Cable lugs are suitable for the connection of copper conductors (section l.5-1000mm²) in power cable with electronic equipment They are made of over 99.9% pure copper tube T2 and coated with tin. Working temperature is from -55℃ to +150℃.

Dimensions

1.5-5

4-5

6-6

10-6

15-8

25-8

35-10

50-10

70-12

95-12

120-12

150-16

185-16

240-16

300-16

400-16

500-20

630-20

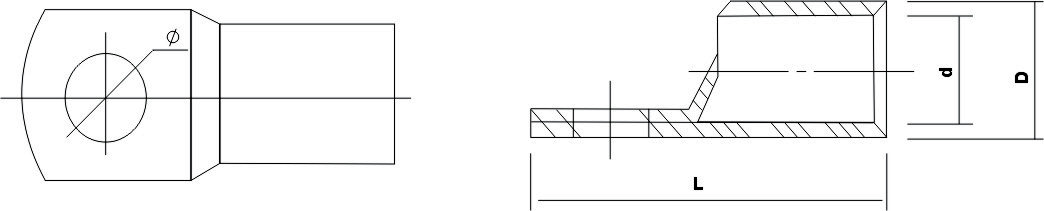

Specifications

TYPE	SC(JGK)-1.5	SC(JGK)-2.5	SC(JGK)-4	SC(JGK)-6	SC(JGK)-10	SC(JGK)-16	SC(JGK)-25	SC(JGK)-35	SC(JGK)-50	SC(JGK)-70	SC(JGK)-95
Φ	f4,f5	f4,f5,f6	f5,f6	f5,f6,f8	f6,f8	f6,f8,f10	f6,f8, f10,f12	f8,f10, f12	f8,f10,f12	f8,f10,f12	f10,f12
D	3.5	4	4.8	5.5	6.8	7.5	9	10.5	12.5	14.5	17.5
d	1.8	2.5	3.1	3.8	74.8	5.5	7	8.2	9.8	11.5	13.8
L	18	19	21	24	25.5	30.5	34	38	45	50	55.5

TYPE	SC(JGK)-120	SC(JGK)-150	SC(JGK)-185	SC(JGK)-240	SC(JGK)-300	SC(JGK)-400	SC(JGK)-500	SC(JGK)-630	SC(JGK)-800	SC(JGK)-1000
Φ	f12,f16	f12,f16	f16	f16	f16,f20	f16,f20	f16,f20	f20	f22	f22
D	19.5	20.5	23.5	26	30	34	38	45	50	56
d	15.5	16.5	18.8	21	24	27	30	35	40	44
L	63	71	78	92	102	113	123	135	170	200
