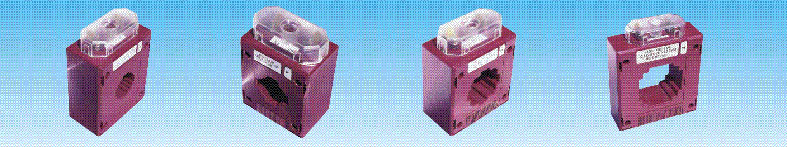

AMC Current Transformer
AMC-30
AMC-35
AMC-40 AMC-55
Unit:mm
Model
AMC-30
AMC-35
AMC-40
AMC-55
Ratio

30/5A to

200/5A

100/5A to

300/5A

200/5A to

600/5A

400/5A to
1000/5A

Window dimension
žŠ30mm
žŠ35mm
žŠ40mm
žŠ55mm
Rated load:2.5va 5va 10va 15va
Accuracy:class 0.5 1.0
Maximun voltage:600v
Frequency:50/60hz
