Temperature Controller

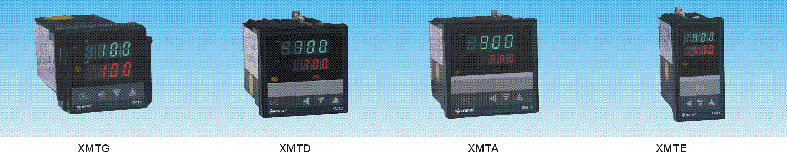

YC808G
YC808E
YC808D YC808F

Application

YC808 series intelligent digital temperature regulator adopt the advanced microcomputer intelligent control technology, and it has strong noise proofability. The products are made according to the international standards by taking wide range switching power. The products own the advanced PID adjustment composed with the latest fuzzy control to deal with the controlled high-speed changing and retardation time. Because of the advantage non-super adjusting plan, the products are easier to use.
This series of intelligent digital temperature controller is an economical meter with high ration of quality to price, and can take the place of conventional digital temperature controller. It has a combined control instrument of multi-function control, alarm, transmitting as well as PID
control function.

Technical Date

Input signal
(1)Electric thermocouple SRBKNEJTW 5Re/W26Re PLIIUL
(2)Thermal resistance Pt100 Jpt100 Cu50
(3)Linear signal 0-5V 1-5V mVF (frequency) 0-10mA 0-20mA 4-20mA
(4)Linear signal radiations
(5)Definable nonstandard signal inputting Elementary error: input a character0.2% of the full range.
Resolution ratio: 10.1.
Sampling period: 3 times/sec, can reach 8 times/sec.
Alarm function: Upper bound, lower limit, upper deviation, lower deviation, upper and lower deviation, within the range of waiting alarm.
Control output: Relay contact AC250V 3A(resistance)
Alarm output:
(1)Relay contact AC250V 3A(resi-stance)
(2)Logical voltage: DC 0-5V
(3)Zero passage pulse actuating: optically thyristor output 1A 600V
(4)phase-shift pulse actuating: optically thyristor outputting 1A 600V
(5)0-10mA output current(load resistance under 600)
(6)0-20mA output current(load resistance under 600)
(7)0-40mA output current(load resistance under 600)
Control ways: PID fuzzy control. State control, Handle control.
Manual operation: Modify the output by keyboard.
Dower voltage:(1)AC85-264V(50/60Hz)(Rated 100-240V AC)
(2)21.6-26.4V AC(Rated 24V AC)
(3)21.6-26.4V AC(Rated 24V AC)
Operating temperature: Non-corrosion place with temperature 0-500C humidity<85% PH Power consumption<5VA
Overall dimension: S:80160A:9696D:7272E:9648F:4896G:4848mm.

Feature

1.Wide red and green numerical tubes display PV and SV simultaneously.
2.Sensing signal appointed input
3.Automatic transducer adjusting
4.Function of second class data lock protection
5.Accuracy:(1)1%FS1character (2)0.5% FSI Character
6.Alarming range: Free design of the full range.
7.Operation range:(1)switching power (2)Transformer supplying.

δ

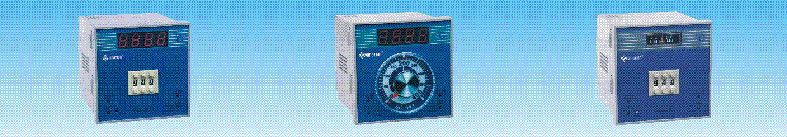

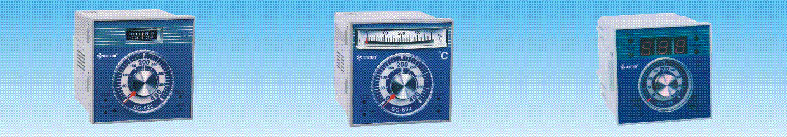

SG-671
SG-642
SG-661
SG-622
SG-632
SG-742
Specifications
Model
Input signal
Accuracy
Law of regulation
Alarm function
Output
Standard Current
Power
Size
SG-681 SG-671 SG-642
KJPT100
0.5,1.0
Two-phase style,time proportion adjustment style
It has alarm function
Relay,Solid state relay

0-10mA

4-20mA

AC110/220V

50/60Hz

9696100mm
SG-612 SG-661 SG-622 SG-632
KJPT100
1.5
Two-phase style,time proportion adjustment style
It has alarm function
Relay,Solid state relay
---

AC110/220V

50/60Hz

9696100mm
SG-771 SG-742
KJPT100
0.5,1.0
Two-phase style,time proportion adjustment style
It has alarm function
Relay,Solid state relay

0-10mA

4-20mA

AC110/220V

50/60Hz

7272100mm
SG-761 SG-724 SG-714
KJPT100
1.5
Two-phase style,time proportion adjustment style
It has alarm function
Relay,Solid state relay
---

AC110/220V

50/60Hz

7272100mm

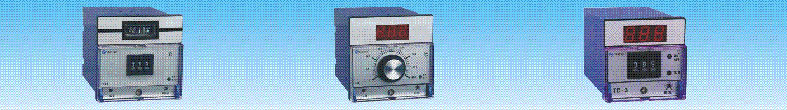

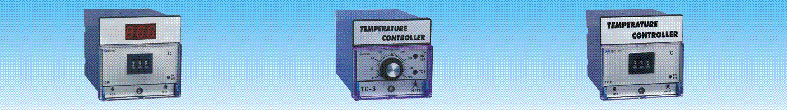

YC4DD
YC4AO
YC4DO
YC4DA
YC4AD
YC3DD
Specifications
Model
Input signal
Accuracy
Law of regulation
Alarm function
Output
Power
Size

YC4DD

YC4AD

K J thermocouple thermal resistance
Class0.5,1.0
Two-phase style,time proportion adjustment style
It has alarm function
Relay,Solid state relay
AC110/220V 50/60Hz
9696120mm

YC4DA

YC4AA YC4DO

YC4AO

K J thermocouple thermal resistance
Class0.5
Two-phase style,time proportion adjustment style
-
Relay,Solid state relay
AC110/220V 50/60Hz
9696120mm

YC3DD

YC3AD

K J thermocouple thermal resistance
Class0.5,1.0
Two-phase style,time proportion adjustment style
-
Relay,Solid state relay
AC110/220V 50/60Hz
7272120mm

YC3DA

YC3AA YC3DO

YC3AO

K J thermocouple thermal resistance
Class0.5
Two-phase style,time proportion adjustment style
-
Relay,Solid state relay
AC110/220V 50/60Hz
7272120mm

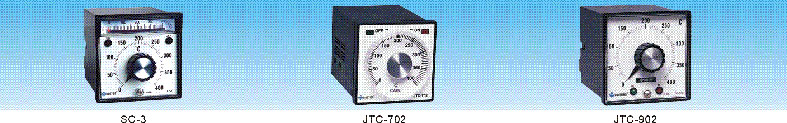

JTC-703
JTC-903
JTC-905
Model
Input signal
Accuracy
Law of regulation
Output
Power
Size
JTC-902 JTC-903 SC-3
K J thermocouple
Class1.5
Time proportion adjustment style
Relay

AC110/220V

50/60Hz

9696122mm
JTC-905
K J thermocouple
Class1.0
Time proportion adjustment style
Relay

AC110/220V

50/60Hz

9696122mm
JTC-702 JTC-703
K J thermocouple
Class1.5
Time proportion adjustment style
Relay

AC110/220V/380V

50/60Hz

7272100mm

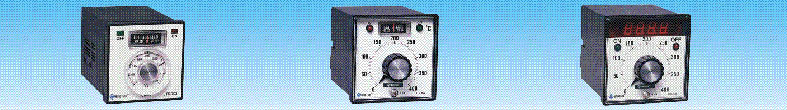

YCTEW
YTC-3

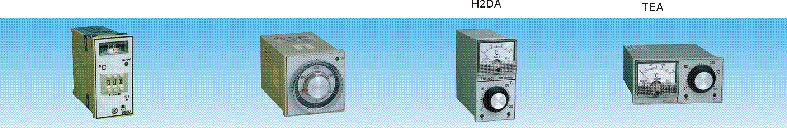

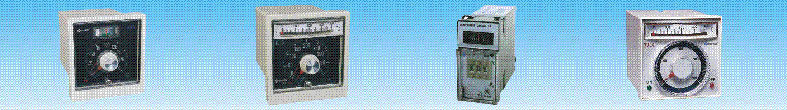

H2DA TEA 2001 2301 2002 2302
YC4896-3301(PO-08)
YC48-4001(PO-024)
YC-TDA(PO-026) YC-TDB(PO-027)
Specifications
Model
Input signal
Accuracy
Low of regulation
Output
Power
Size
Other function

LC-48

H2DA E5EM

K J thermocouple
Class1.5
Time proportion adjustment style
Relay

AC110/220V

50/60Hz

4896110mm

YCT-2

YCTEW

K J thermocouple
Class1.5
Time proportion adjustment style
Relay

AC110/220V

50/60Hz

9696122mm
TEA 2001 2002 2301 2302
K thermocouple thermal resistance
Class1.5
Time proportion adjustment style

AC110/220V,380V

50/60Hz

9696150mm
Contact capacity:AC220V3A Resistance It has alarm funotion
Type

YC4896-3301

(PO-08)

YC48-4001

(PO-024)

YC-TDA

(PO-026)

YC-TDB

(PO-08)

Feature
Coding setting,deviation indicating thermoregulator
Dial setting,no indicating thermoregulator
Button setting,wholevolume rangeindicating thermoregulator
Button setting,wholevolume rangeindicatingthermoregulator
Out Dimension
4896110mm
4848110mm
60120150mm
12060150mm
Hole Dimension
4892mm
4545mm
55116mm
11655mm


Electrical Components Direct
