Silicon Controlled Rectifier
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Application |
|
|
|
|
|

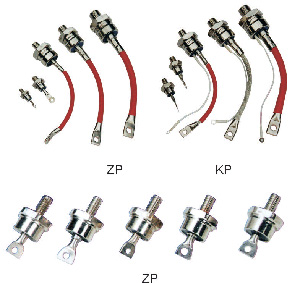

Type ZP is applicable for the
electrical rectifying circuits turning AC to DC.
Type KP is used as a controlled rectifier and a switch in AC system with
frequency lower than 400Hz. |
|
|
|
|
|
Specifications |
|
|
|
|
|
Type
|
KP10
|
KP20
|
KP50
|
KP100
|
KP200
|
|
Average through current(A)
|
10
|
20
|
50
|
100
|
200
|
|
Average obverse and reverse
repeatpeak voltage(V)
|
100-1600
|
|
Average obverse and reverse
repeat current(mA)
|
<1
|
<1
|
<2
|
<4
|
<4
|
|
Average through voltage(V)
|
¡Ü0.8
|
¡Ü0.8
|
¡Ü0.8
|
¡Ü0.8
|
¡Ü0.8
|
|
Gate triggering current
voltage(mA/V)
|
5-100/¡Ü3.5
|
5-70/¡Ü3.5
|
8-150/¡Ü3.5
|
10-250/¡Ü4
|
10-250/¡Ü4
|
|
|
|
|
Type
|
ZP5
|
ZP20
|
ZP50
|
ZP100
|
ZP200
|
| Rated
obverse average current(A) |
5
|
20
|
50
|
100
|
200
|
| Rated
obverse average voltage(V) |
¡Ü0.7
|
¡Ü0.7
|
¡Ü0.8
|
¡Ü0.8
|
¡Ü0.8
|
| Reverse
repeat peak voltage(V) |
100-1600
|
100-1600
|
100-1600
|
100-1600
|
100-1600
|
| Average
reverse repeat current(mA) |
¡Ü1
|
¡Ü2
|
¡Ü4
|
¡Ü6
|
¡Ü8
|
|
|
|
|
|
|
|
|
|
|
|
|
|
KBPC Bridge Rectifier |
|
|
|
|
|
|
|
|
|
|
|
Rated voltage: 400V 600V 1000V 1200V
Rated current: 5A 10A 15A 20A 30A 35A
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
QL Bridge Rectifier |
|
|
|
|
|
Rated voltage: 400V 600V 1000V 1200V
Rated current: 5A 10A 15A 20A 30A 35A
|
|
|
|
|
|
|
|
|
